型號Model
|
ZJ5820A
|
ZJ5821A
|
|
面線剪線裝置face thread trimmer
|
自動剪面線Auto trimmer top-thread
|
自動剪面線Auto trimmer top-thread
|
|
底線剪線裝置bobbin thread trimmer
|
無No
|
長線剪切l(wèi)ong thread cut
|
|
用途Application
|
男裝、女裝Men's and women's cloth
|
男裝、女裝Men's and women's cloth
|
|
縫制速度Speed
|
1000~2700rpm(可以100rpm為單位設定Itcanbe set at 100rpm)
|
1000~2700rpm(可以100rpm為單位設定Itcanbe set at 100rpm)
|
|
功能Features
|
剪線裝置僅剪切面線。可縫紉最長為50mm的扣眼底線和芯線需要手工剪切
Only frimmer face thread.can sewing maximum 5Omm holethe bottom and core
wires needto be cut by hand
|
剪線裝置將較長地剪切所有線頭在縫紉持續過程中可在更長距離內安全把握線尾。很合適要求精確剪切線頭或手動剪線的情況。
All thread are cut into long end and safelyheld the thread end in longer
distance duringsewing, suitable for need accurate thread endor manual thread
trimming
|
|

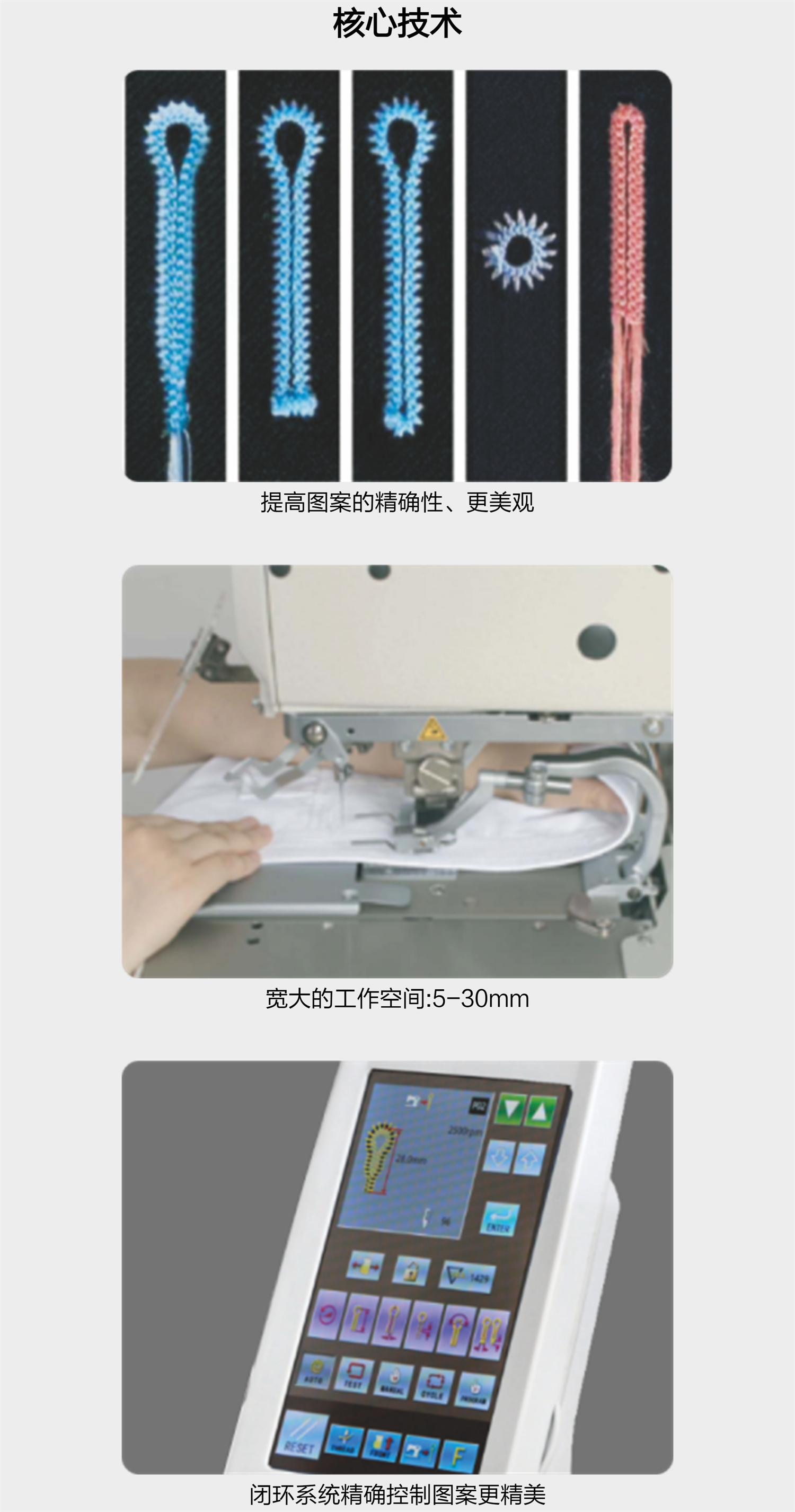

針跡形狀stiich appearance
|
|
|
|
線尾長度End length
|
手工Manual
|
35mm
|
|
鎖逢長度holing length
|
5-50mm
|
5-42mm
|
|
針跡節距stitch length
|
0.5~2.0mm
|
0.5~2.0mm
|
|
針跡幅寬stitch width
|
1.5mm~5.0mm(機械式1.5mm~4.0mm、程序式可加寬1.0mm1.5mm~5.0mm(
mechanical1.5mm~4.0mm、 program can increase width1.0mm )
|
1.5mm~5.0mm(機械式1.5mm~4.0mm、程序式可加寬1.0mm1.5mm~5.0mm(
mechanical1.5mm~4.0mm、 program can increase width1.0mm )
|
|
錐形加固長度cone-shape reinforce
length
|
0~20mm
|
0~20mm
|
|
壓腳高度foot lifter height
|
標準為12mm(可以到16mm為止)standard12mm(maximum achievel6mm )
|
標準為12mm(可以到16mm為止)standard12mm(maximum achievel6mm )
|
|
啟動方式start mode
|
腳踏開關(腳踏板式、2連腳踏板式)或是手動開關
Pedal switch( by pedal, double pedal)or manual
|
腳踏開關(腳踏板式、2連腳踏板式)或是手動開關
Pdal switch( by pedal, double pedal)or manual
|
|
送布方式,cloth feed mode
|
X、Y、?的3脈沖馬達間歇送布pause feed by 3 pulse motor
|
X、Y、?的3脈沖馬達間歇送布pause feed by 3 pulse motor
|
|
機針Needle
|
DOx558-NY2 #14~#18(風琴)
|
DOx558-NY2 #14~#18(風琴)
|
|
安全裝置safety device
|
內藏暫停功能及當安全電路發生故障時的自動停止裝置
With built-in pause function and auto stop device when error of circuit
|
內藏暫停功能及當安全電路發生故障時的自動停止裝置
With built-in pause function and auto stop device when error of circuit
|
|
上軸馬達axle motor
|
Ac伺服馬達(4極 550W)AC servo motor (4P 550W)
|
Ac伺服馬達(4極 550W)AC servo motor (4P 550W)
|
|
空氣壓力air pressure
|
主調節器:0.5MPa錘子壓力調節器:0.4MPahammer
pressure regulator 0.4MPa
main regulator 0.5MPa
|
主調節器:0.5MPa錘子壓力調節器:0.4MPahammer
pressure regulator 0.4MPa
main regulator 0.5MPa
|
|
空氣消耗量air consumption
|
43.2 1/min(8次循環/min)8 times cycle/min
|
43.2 1/min(8次循環/min)8 times cycle/min
|
|
電源Power
|
單相100V/200V、三相200V/220V/380V/400V
400VA
Single phase100V/200v、3-
phase200V/220V380V/400V 400VA
|
單相100V/200V、三相200V/220V/380V/400V
400VA
Single phase100V/200v、3-phase200V/220V380V/400V 400VA
|
|
重量Weight
|
頭部約120kg、操作盤約0.6kghead120kg、
panel0.6kg控制箱14.2~16.2 kg(根據出口國的不同而不同)
control box14.2~16.2 kg
|
頭部約120kg、操作盤約0.6kghead120kg、
panel0.6kg控制箱14.2~16.2 kg(根據出口國的不同而不同)
control box14.2~16.2 kg
|
